Wooden Ovolo Moulding Planes

wooden ovolo moulding plane
Our Rating



Reviewed By: I.Ball

Manufacturer: Various
Tool Type: Wooden Planes
Plane Type: Ovolo Moulding




The wooden ovolo moulding plane is one of the more common moulding planes.

An ovolo plane mould is a quarter-hollow with a step either side of it (fillet). The resulting cut is the reverse with the quarter-hollow producing a quarter-round mould.

The ovolo mould can also be seen in combination moulds where a moulding plane has a form of ovolo mould along with another mould such as astragal, scotia etc.

Wooden ovolo moulding planes were produced in abundance probably for close to 200 years from about the early-1700's to around early-to-mid-1900's.

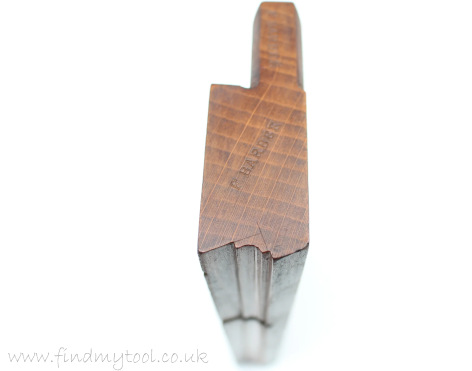

old wooden ovolo mould plane

During this long British wooden moulding plane production time-span, a number of manufacturers have made wooden ovolo planes, a few makers names include:

Atkins
Bewley
Green
Greenslade
Griffiths
Marples (William)
Mathieson
Moon
Moseley
Mutter
Nelson
Nurse
Preston (Edward)
Sym
Shepley
Varvill


Manufactured Dates

<1700 - 1950's>
