WS A130 Plane Review By: I.Ball
Category: Old Block Planes
Extra Info: What is a Block Plane? Block Plane Videos
Manufacturer: WS
Plane Type: Block
Model No: A130

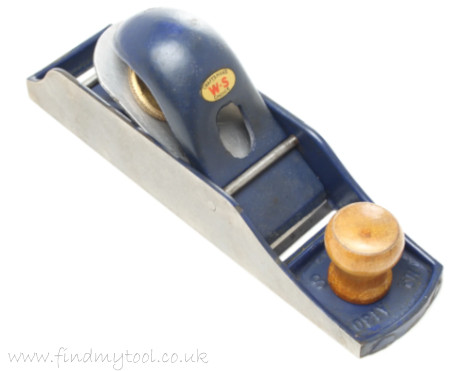

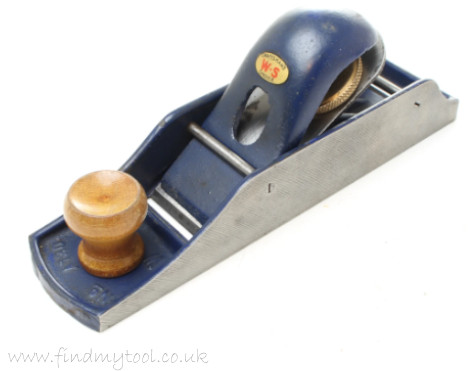

The WS block plane number A130 is a double ended block plane with
a wooden front knob.
The WS double-end block plane was 'Made In England'.
The blade depth is adjusted by manually setting the blade in the desired
position and then locking the blade in place by securing the lever cap.
The curvacious lever cap secures the blade by turning the adjuster wheel underneath
the lever cap.
The WS A130 is very similar to the Stanley 130
and Record 0130
double ended block planes.
At a glance and even on closer inspection the WS A130 looks almost
identical to the Record 0110 block plane, the only real difference is
the plane markings and the appearance of the wooden front knob.
The WS A130 plane was originally supplied in a cardboard box.
Width:
Length Of Sole: 8"
Mouth Width:
Cast Thickness:
Body: high grade cast iron
Lever Cap: high grade cast iron
Plane Finish: blue
WS A130 Plane Blade / Cutter
Width: 41mm (1 5/8 inch)
Blade Thickness:
Number of Grooves: N/A
Slot Width: N/A
Top Of Blade Shape: Curved
Blade Markings:
"A130" - found on the top face at the very front of the plane.
"WS" - found on the top face at the front of the plane between the front knob and the blade.
"Craftman's W.S Choice" - found on trade label on top of the cap.
....
