Record 0113 Plane Review By: I.Ball
Category: Old Compass Planes
Extra Info: What is a Compass Plane? Compass Plane Videos
Manufacturer: Record
Plane Type: Compass
Model No: 0113

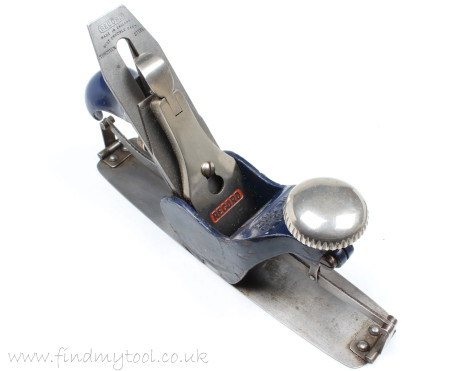

The Record 0113 compass plane otherwise known as the Record 0113 circular
plane is a 10 inch long metal plane with an adjustable flexible sole.
The plane is used for planing timber which has a curve such as the edge
of a round table.
The flexible sole can be adjusted to form a convex sole or a concave
sole, set to the required curvature.
The flexible sole is anchored with the frame at either end of the sole
with a screw adjustment in the center.
The sole is adjusted by turning the knurled sole adjustment wheel nut;
located on the top of the plane towards the front.

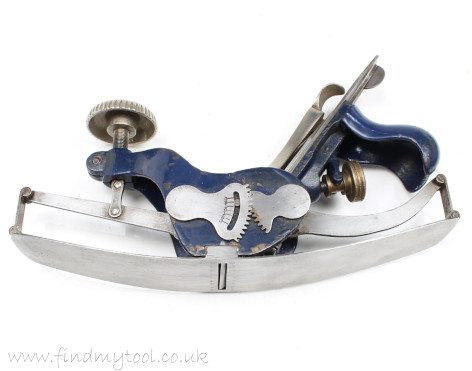

The 0113 has graduated toothed plates on one side of the plane. These
graduations can be used to assist in setting the desired radii.
Once the sole has been adjusted to form the desired curvature, the
adjustment wheel nut is locked by securing the small locking screw just
under the adjustment wheel nut (different to the Record 020 / 020C).
Similarly the small locking screw should
be loosened before turning the adjustment wheel nut.
The frame shape and front metal knob provides handy grips to handle and
control the plane with ease.
The Record 0113 is fitted with the same plane blade, cap iron and lever
cap as the number 03 bench planes. This makes finding a replacement piece
a lot easier to find.
The plane blade and cap iron are locked in position with the lever cap.
This helps to reduce chattering. The lever cap has a plated finish which
is usually a nickel plating. The lever cap has a pear shaped hole in
the middle in which a screw runs through, the shape helps prevent the
cap loosening.
Also, as with the standard bench planes such as the 03, the 0113 compass plane has a
lateral blade adjusting lever located just behind the blade. This lever
pivots side-to-side which in turn adjusts the cutter side-ways
(note: the lever cap must be released when making these alterations).
When looking at compass planes, you may come across some very similar planes
including the
Stanley 113 compass plane.
Body and frog:
high grade cast iron
Lever cap:
high grade cast iron with a plated finish
Cap iron:
best quality steel
Base:
flexible spring steel
Blade:
tungsten steel
Plane finish: blue
Record 0113 Plane Markings

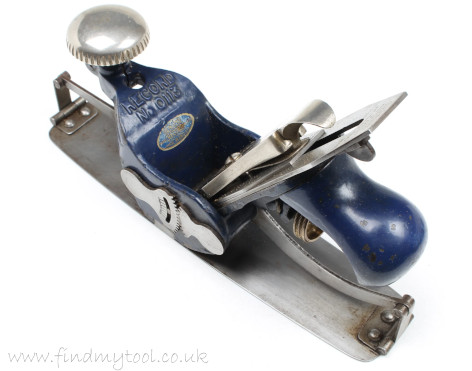

"Record No 0113" - found on the top face of the frame between the blade and front knob.
"Record" - found on the lever cap face.
1932 - 1943
....
