New Stanley Block Plane - No. 220 / 1-12-220

stanley 1-12-220 block plane
Our Rating



Stanley 1-12-220 Plane Review By: I.Ball

Category: Block Planes

Manufacturer: Stanley

Plane Type: Block

Model No: 220 / 1-12-220




The new Stanley 220 Plane review covers the latest adjustable Stanley 220 Block Plane which Stanley also refers to and advertises as the new Stanley 12-220 or 1-12-220 Block Plane.

If you are looking for info / review on the old versions of this plane, see the Old Stanley 220 Plane review.

The Stanley 220 block plane has a long uninterupted history with Stanley making the first 220 plane over 125 years ago.



stanley 1-12-220 block plane

125+ years of feedback from woodworkers gives great confidence the tool design does the job.

The 220 has received a modern revamp which has seen a wooden front knob change to a fixed built-in metal knob, the lever cap change from a hollow hood to a solid hood and the blade adjuster mechanism change.

The plane is comfortable in the hand with the curved lever cap and body curves.

The blade lays on top of the cutter adjuster which offers lateral blade adjustments and depth of cut adjustments, this allows quick and easy blade positioning.

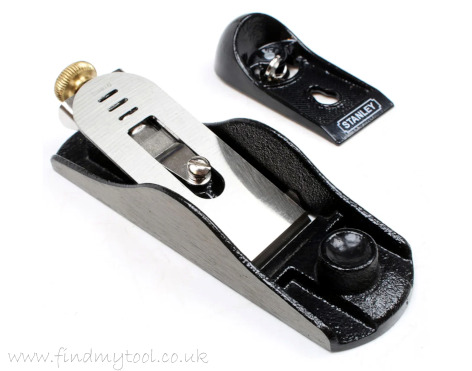

new stanley block plane 1-12-220

The lateral blade adjustment feature is an advantage and additional feature over older, earlier Stanley 220 block planes which only had depth of cut adjustment.

Spare / replacement blades for the 220 are readily available and no doubt will be for many years to come.

I am aware of reports on the internet of some Stanley planes needing some fine tuning however once tuned they are good solid planes. The plane I looked at was flat and sharp.

The plane finish is a little cruder than older versions but for the price this can maybe overlooked.

The new Stanley 220 is a good value for money block plane that is great if you are on a budget, looking for an entry level block plane, if you are a DIY'er or carpenter looking for a workhorse.

stanley 1-12-220 block plane

If you know you will be using a block plane a lot and you can afford the extra, I personally would pay the relatively small amount extra for the Stanley 9 1/2 / 1-12-020 or if you can afford the steeper price then one of the Veritas block planes.



Cautions / Notes

* Important: please refer to the 'disclaimer' at the foot of this review.
* Wearing safety clothing and eye protection is usually a good idea to help protect against injury.

- The blade(s)/cutter(s) is very sharp, take suitable precautions when using/handling/storing the plane/cutter(s) to prevent injury.

- Failure to loosen parts when making adjustments to the plane can result in damage to the plane such as cross-threading screw threads. Never force a part to move.

- Overtightening parts can cause damage to the plane and the plane threads.



Plane Construction

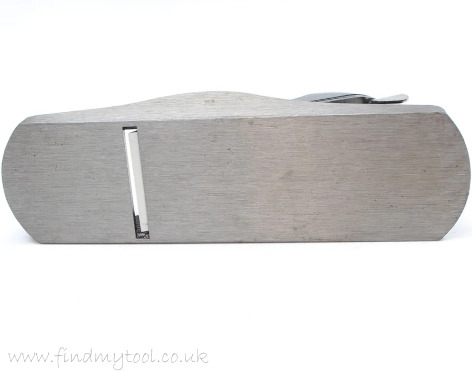

new stanley block plane 220

Body:
fine grey cast iron

Lever cap:
fine grey cast iron

Blade adjuster knob:
brass

Knob:
built-in metal

Plane finish:
black



Construction Origin:
?




What Is The Difference Between a New Stanley 220 Plane and a New Stanley 9 1/2 / 5-12-020 Plane?

The new Stanley 220 block plane is similar to the new Stanley 9 1/2 / 5-12-020 block plane with the core differences being the Stanley 9 1/2 / 5-12-020 has an ajustable mouth whereas the Stanley 220 has a fixed mouth.

There is a difference in the front knobs with the 220 having a fixed moulded front knob and the 9 1/2 / 5-12-020 having a metal front knob.

The final difference is the Stanley 9 1/2 / 5-12-020 has side wall depressions, originally called the "Hand-Y" feature, whereas the 220 has flat sides.




Manufactured Dates

<1999 - Today


For info on older 220 block plane versions see the Old Stanley 220 Plane review.
