Woden Fillister Plane - No. W78

woden fillister plane
Our Rating
User Rating

The Verdict

Woden W-78 Review By: I.Ball


Manufacturer: Woden

Plane Type: Fillister

Model No: W78

The Woden fillister plane model number W78 is a multi-purpose tool used primarily for rebate and bullnose work.

The W78 plane has an adjustable fence which is supported on two removable cylindrical metal poles (arms) and locked in place on each rod with knurled thumb screws. The metal rods and the fence can be positioned on either side of the plane.

The Woden W78 cutter can be used in the central cutting slot for normal work or it can be placed in the front-most cutting slot for bull-nose work.

There is a metal handle at the rear of the plane which is part of the structure of the body. There is also a hardwood knob handle towards the front of the plane. The combination of these two handles offer comfortable efficient handling.



The W78 was also fitted with an adjustable depth gauge and a spur (incising cutter) on the off-side of the plane between the two cutter spaces.

The plane was finished with a dark blue japanning.


1.

Plane Construction

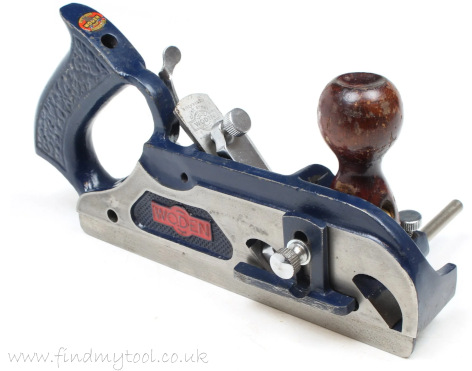

woden w78 fillister rebate plane

Body:
best quality grey cast iron

Knob :
selected hardwoods

Plane Finish:
blue

Weight:
4 lbs 6 oz

Blade:
best quality steel

Blade Width:
1 17/32 inch


2.

Plane Dimensions

Length:
8 1/2 inch

3.

Plane Parts List

The Woden W78 Plane Parts List:

1x Body
1x Wooden front knob
2x Arms
1x Depth stop
1x Depth stop thumb screw
1x Dual arm side fence
2x Side fence knurled screws
1x Lever cap
1x Lever cap knurled screw
1x Woden cutter
1(?)x Spur

4.

Manufactured Dates

? - 1962..

This plane wasn't advertised in the 1966 Woden catalogue.

5.

Plane Also Known As

Woden Plane Number 78
Woden Plane Number W-78
Woden Rebate Plane W-78
Woden Fillitster Plane W-78

6.
